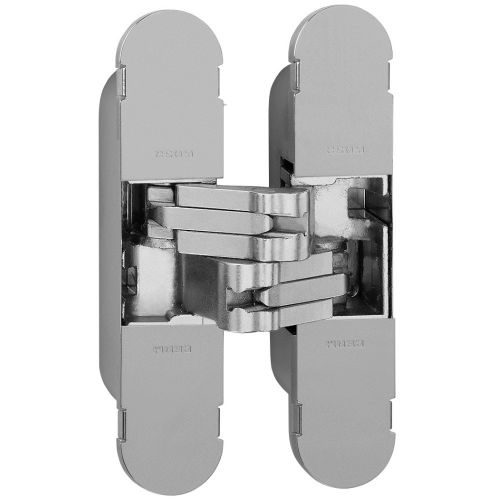

Eurospec Small Ceam 3D Concealed Hinge

Description

(Note: if you try to adjust one nut at a time there will be little to no depth movement) The height and depth can also be adjusted by slacking the nuts, one side of the hinge controls height, and the other controls depth. Tighten up the nuts. Normally supplied set for a standard 3mm joggle gap. Maximum adjusted door weight:- With 2 hinges - 25 kg- With 3 hinges - 40 kg (middle hinge positioned 250mm below top hinge)(Load capacity refers to door H2100 x W850 mm) Adjustment Instructions:You will need:- A ratchet or spanner set- An Allen or hex key set. Fixings not included. With a 10-year mechanical guarantee, you can trust in the durability and reliability of this top-of-the-line hinge. This hinge features removable cover plates to discreetly conceal the adjustment screws, providing a sleek and polished look. 2. Repeat the process for the other side of the hinge. The gap can be adjusted from 2mm (minimum) to 6mm (maximum) door gap. Tighten the Allen key clockwise to the desired depth3. The Eurospec Small Cream 3D Concealed Hinge is a medium-duty hinge designed for unrebated, flush-faced quality timber doors. The Zinc casing must be inset in the door to allow for the caps which add 1mm Supplied in SINGLES. Slack both nuts on one side of the hinge counterclockwise. Available in Brass, Bronze, Nickel or Silver. 1.
