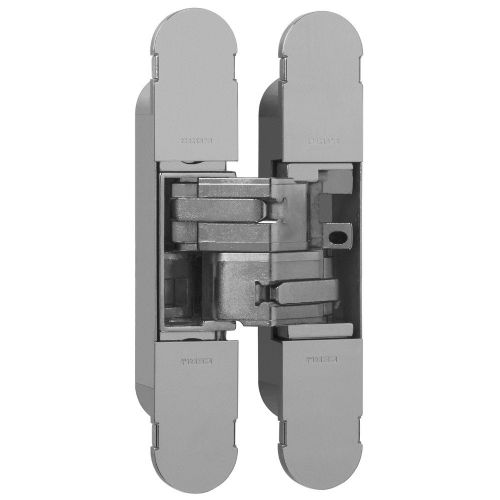

Eurospec Medium Ceam 3D Concealed Hinge

Description

This medium-duty hinge features removable cover plates to hide adjustment screws, ensuring a sleek and seamless finish. Tighten the allen key clockwise to desired depth3. Tighten up the nuts. (Note: if you try to adjust one nut at a time there will be little to no depth movement) The height and depth can also be adjusted by slacking the nuts, one side of the hinge controls height, and the other controls depth. 1. The Zinc casing must be inset in the door to allow for the caps which add 1mm Intumescent Fire Kit  is also available. Maximum adjusted door weight:- With 2 hinges - 40 kg- With 3 hinges - 60 kg (middle hinge positioned 250mm below top hinge)(Load capacity refers to door H2100 x W850 mm) Adjustment Instructions:You will need: - A ratchet or spanner set- An Allen or hex Key set. Normally supplied set for a standard 3mm joggle gap, the gap can be adjusted 2mm (minimum) to 6mm (maximum) door gap. The Eurospec Medium Cream 3D Concealed Hinge is a top choice for unrebated, flush-faced quality timber doors. 2. Available in Antique Bronze, Black Nickel, Brass, Bronze, Matt Black, Nickel, Satin Brass or Silver. Plus, with a 10-year mechanical guarantee, you can trust in the durability and reliability of this hinge for years to come. Fixings not included. Repeat the process for the other side of the hinge. Supplied in SINGLES. Slack both nuts on one side of the hinge counterclockwise.
