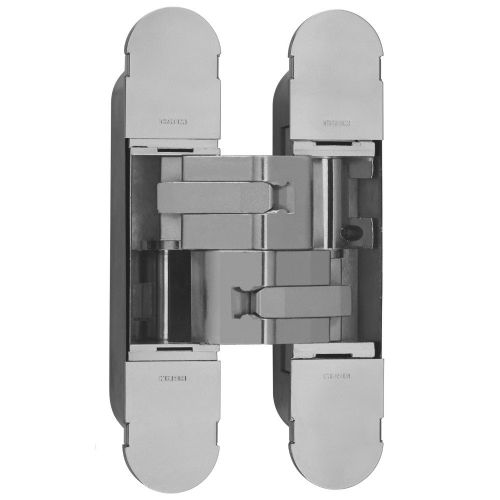

Eurospec Large Ceam 3D Concealed Hinge

Description

Tighten up the nuts. Plus, with a 10-year mechanical guarantee, you can trust in the durability and reliability of this product. Slack both nuts on one side of the hinge counterclockwise. 1. (Note: if you try to adjust one nut at a time there will be little to no depth movement) The height and depth can also be adjusted by slacking the nuts, one side of the hinge controls height, and the other controls depth. Tighten the allen key clockwise to desired depth3. With removable cover plates to conceal the adjustment screws, this hinge offers both practicality and aesthetics. Intumescent Fire Kits are also available  Supplied in SINGLES. Maximum adjusted door weight:- With 2 hinges - 80 kg- With 3 hinges - 120 kg(Load capacity refers to door H2100mm x W850mm) Adjustment Instructions:You will need: - A ratchet or spanner se- An Allen or hex Key set. This heavy-duty hinge is designed to provide seamless functionality while maintaining a discreet appearance. Normally supplied set for a standard 3mm joggle gap, the gap can be adjusted 2mm (minimum) to 6mm (maximum) door gap. Repeat the process for the other side of the hinge. The Eurospec Large Cream 3D Concealed Hinge is the perfect solution for unrebated, flush-faced quality timber doors. The Zinc casing must be inset in the door to allow for the caps which add 1mm. Available in Antique Bronze, Black Nickel, Brass, Bronze, Matt Black, Nickel, Satin Brass or Silver. Fixings not included. 2.
