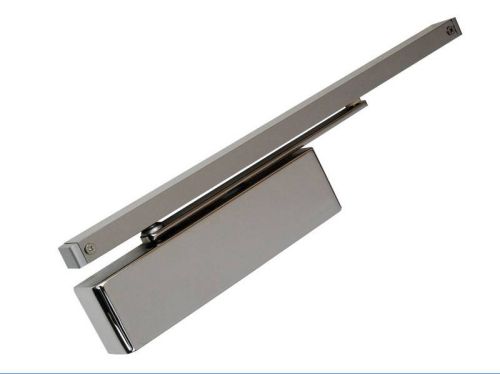

More Slimline Architectural Boss Size 2-3 Cam Action Overhead Door Closer

Description

Supplied in SINGLES complete with bracket, screws and fixings. The slimline architectural design makes this a popular choice on high spec developments and is suitable for most applications particularly those with public use. EN Size - 3 Max Door Width/Weight – 950mm/60Kg Universal Application (Fig 1, 6 & 61) Adjustable Sweep Speed Adjustable Latch Speed Power Adjustable by Spring Adjustable Mechanical Backcheck CE marked against EN1154 Included in successful fire test to EN1634 Has an opening force of 30N or less when fitted to a fire door (size EN3) measuring 803mm and above optional size 2-4 by spring power   Full Specification Closing Force; - EN Size 3*Door Size Max Width; - 950mmWeight; - 60kgBody Dimensions; - Length 210mm - Width 52mm - Depth 36mmApplication; - Regular Fig. 6 - Transom Fig. 61 Mechanism; - Cam  Power Shoe Bracket; - NoAngle Of Opening; - 110 Non Handed; - YesPower Adjustment By Spring; - YesPower Adjustment By Position; - NoAdjustable Sweep Speed; - YesAdjustable Latch Speed; - YesAdjustable Backcheck; - YesAdjustable Delayed Action; - NoGuarantee; - 25 Years  (*Optional Size 2-4 by spring adjustment) Please see our Guide to Choosing the Correct Overhead Door Closer Fitting Instructions PDF Click Here Declaration of Performance Click Here Available in Silver Enamel, Polished Brass, Satin Stainless Steel, Polished Stainless Steel. 1 - Push Side Fig. This is a high efficiency trus cam action slide arm Overhead Door Closer.
