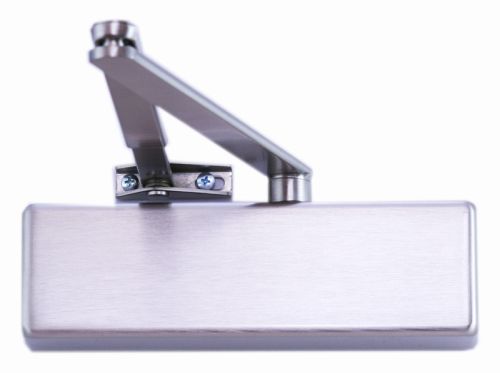

More Slimline Architectural Boss Size 2-4 Overhead Door Closer

Description

This is a stylish adjustable power Overhead Door Closer which is suitable for medium use general applications such as offices, accomodation and flat entrance doors. 1 - Parallel Arm Fig. 61**Mechanism; - Rack & Pinion Power Shoe Bracket; - YesAngle Of Opening; - 180 Non Handed; - YesPower Adjustment By Spring; - NoPower Adjustment By Position; - YesAdjustable Sweep Speed; - YesAdjustable Latch Speed; - YesAdjustable Backcheck; - No Adjustable Delayed Action; - NoGuarantee; - 25 Years (*Certifire approved at Size 3 only. Supplied in SINGLES complete with bracket, screws and fixings. Other colours on request. EN Size 2-4*  Max Door Width/Weight – 950mm/60Kg Universal Application (Fig 1, 6 & 61) Adjustable Sweep Speed Adjustable Latch Speed Power Adjustable by Position Adjustable Backcheck Option CE marked against EN1154 Included in successful fire test to EN1634   Full Specification Closing Force; - EN Size 2-4*Door Size Max Width; - 950mmWeight; - 60kgBody Dimensions; - Length 220mm - Width 59mm - Depth 42mmApplication; - Regular Fig. 6 - Transom Fig. 61)   Please see our Guide to Choosing the Correct Overhead Door Closer Fitting Instructions PDF Click Here Declaration of Performance Click Here Available in Silver Enamel, Satin Stainless Steel, Polished Stainless Steel, Polished Brass. **Not Certifire aproved at Fig.
