Timco - Adjustable Fieldgate Hinge Set - Galvanised - 600mm

Description

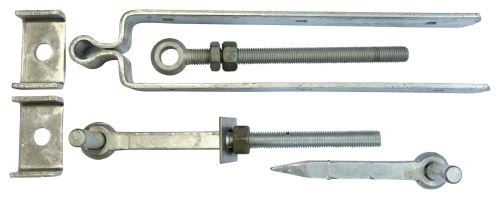

Fixings Include:1 x Top Strap1 x Adjustable Bottom FittingGate Hook to Drive1 x Hook to Bolt2 or 3 x M10x95mm Galvanised Cup Square BoltsHex Nut and Washer. Part of the TIMco Taurus Fieldgate Hardware selection of Metal Gate Fittings. The hot dipped galvanised finish is perfect for use in industrial areas with a moderate salt atmosphere. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. The hooks to drive are barbed to prevent the gate from working loose. Although suitable for all customers, those in Scotland, Ireland and the South West will benefit most from the Galvanised finish, due to the susceptibility to high levels of corrosion in those areas. For top corrosion resistance, they are available in a galvanised finish. Supplied as a Set. The hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate from being lifted off. This is particularly useful when hanging pairs of gates. Depending on the weight distribution of the gate the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. The TIMco Adjustable Fieldgate Hinge Set has been designed for agricultural field gates and drive way gates that are to be hung on timber posts. Designed for driveway gates, agricultural field gates, stables and garages, this heavy gate hardware is ideal for increased security. This collection includes hook and band hinges, field gate hinge sets, throwover gate loops, catches and chains. The hinge will provide excellent support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to fix firmly in place.
