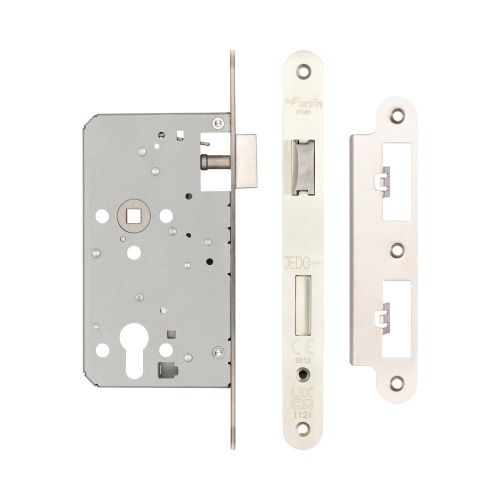

Frelan Jedo 60mm Din Escape Lock
Description
The Frelan Jedo JL‑DE60 DIN Escape Lock is a specification‑grade stainless steel lock designed for controlled but safe egress in commercial and residential environments. Constructed from high‑quality Grade 304 stainless steel, it offers excellent corrosion resistance (Grade 3) and long‑term durability, making it suitable for high‑traffic applications.
Fully FD30/60 fire rated and Certifire approved, the JL‑DE60 is compliant with BS EN 179 for emergency exit devices and carries UKCA and CE certification. Its 60mm backset and availability in both square and radius forend options make it suitable for both new installations and retrofit projects. The lock includes a sprung mechanism for smooth handle operation and comes complete with stainless steel fixings. Backed by a 15‑year mechanical warranty, it provides dependable safety and performance for modern escape‑route door systems.
Key features:
- Material: Grade 304 stainless steel
- Backset: 60mm
- Forend options:
- Square
- Radius
- Sprung latch for smooth handle return
- Fire rating: FD30/60
- Certifire: Yes
- Standard compliance: BS EN 179 (emergency escape doors)
- UKCA / CE marked
- Corrosion grade: 3
- Suitable for: Internal / external – residential & commercial
- Suitable door thickness: 35–54mm
- Backplate dimension: 235mm
- Overall size: 165 × 90 mm
- Fixings included: 4 × stainless steel screws
- PVD finish: No
- Mechanical warranty: 15 years
