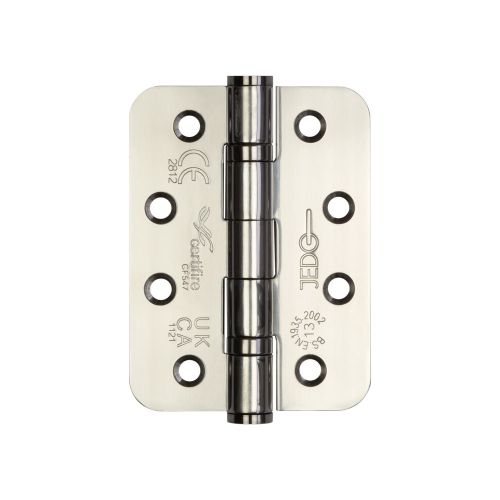

Frelan Jedo Stainless Steel Grade 13 Radiused Ball Bearing Hinges 102x76mm
From
£5.95
RRP
£7.44
The Frelan Jedo Grade 13 Radiused Ball Bearing Hinges (102x76mm) offer heavy‑duty performance for doors up to 120kg. Made from stainless steel with smooth ball bearing action, they are Certifire‑approved, UKCA/CE certified, and ideal for high‑traffic commercial or residential use.
Description
The Frelan Jedo Stainless Steel Grade 13 Radiused Ball Bearing Hinges are engineered for strength, durability, and smooth door operation. Designed to support doors up to 120kg when three hinges are fitted, they are ideal for both commercial and residential environments with frequent use. The ball bearing construction ensures friction‑free, long‑lasting performance, while the radiused corners make them perfect for CNC‑machined doors and quick installation on rounded‑edge frames. Manufactured from high‑grade stainless steel and available in satin or polished finishes, these hinges meet BS EN 1935 standards and are fully Certifire, UKCA, and CE approved for fire‑rated doors.
Key features:
- Material: Stainless steel
- Finish options: Satin stainless steel, polished stainless steel
- Size: 102 × 76 × 3 mm
- Ball bearing construction for smooth and durable performance
- Load capacity: Supports doors up to 120 kg with 3 hinges
- Standards compliance: BS EN 1935
- Mechanical durability: Tested to 200,000 cycles
- Certification: UKCA 1121, CE 2812, Certifire approved
- Fire rating: FD30/60 suitable
- Design: Radiused corners for CNC‑machined and rounded‑edge doors
- Fixings included: 16 × wood screws (28mm length, 5mm diameter)
- Ideal for: Commercial and residential applications requiring high reliability
Sold in pairs.
