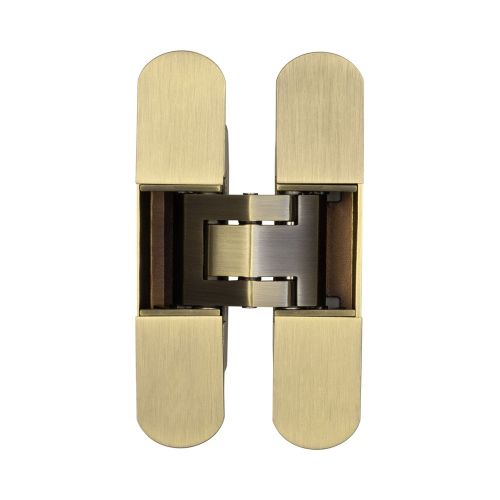

Frelan Ghost 3D Concealed Hinge

The Frelan Ghost 3D Concealed Hinge is engineered for high‑performance internal doors requiring a minimalist, fully concealed hinge system. Designed for flush, unrebated timber doors, this hinge delivers exceptional strength while remaining completely hidden from view when the door is closed, ensuring a clean, uninterrupted aesthetic suited to contemporary residential and commercial interiors.

Constructed from Grade 304 stainless steel, it provides long‑lasting durability and smooth movement. Its 3D adjustability — height, depth, and lateral — allows precise alignment during installation, ensuring perfect door positioning and long‑term performance. Ideal for heavy‑duty use, it supports doors up to 60kg, or up to 120kg when three hinges are fitted.

The hinge features removable cover plates for concealed fixings, maintaining a flawless appearance even in premium design settings. It is low‑maintenance, fire‑rating compatible when used with separately purchased 2mm Graphite Flexifire, and supplied with all necessary fixings, including Allen keys and stainless steel screws.

Key features:

• Suitable for: Flush, unrebated quality timber doors
• 3D adjustability: Height, depth, and lateral movement
• Material: Grade 304 stainless steel
• Fixing design: Concealed fixings with removable cover plates
• Load capacity:
  • Up to 60kg with 2 hinges
  • Up to 120kg with 3 hinges
• Fire rating: FD60 (with 2mm Graphite Flexifire — sold separately)
• Operation: Smooth, maintenance‑free performance
• Fixings included:
  • 2 × Allen keys
  • 8 × stainless steel wood screws
  • 4 × cover plates
• Application: Internal residential and commercial installations
• Mechanical warranty: 5 years
