Description

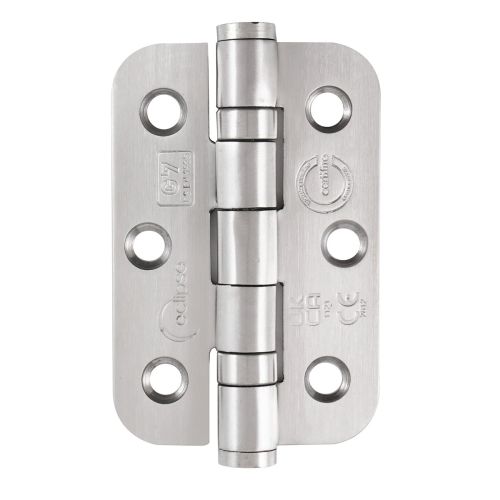

The Eclipse 76 x 51mm (3" x 2") Grade 7 Stainless Steel Radius Ball Bearing Hinges are designed for residential and light commercial applications requiring dependable performance and certified fire protection. Manufactured from SUS 201 stainless steel with precision ball bearings and 10mm radius corners, they provide smooth operation and long-lasting durability while meeting recognised European performance and fire safety standards.
Key Features:
- Eclipse Grade 7 radius ball bearing hinges
- Manufactured from SUS 201 stainless steel
- Size: 76 x 51 x 2mm (3" x 2")
- Manufactured with 10mm radius corners
- Precision ball bearing construction for smooth, reliable operation
- BS EN 1935 performance tested
- Tested to 200,000 operating cycles
- Grade 7 classification
- Suitable for doors up to 40kg total door mass
- BS EN 1634 fire tested for FD30 and FD60 timber fire doors
- CE 2812, UKCA 1121 and Certifire CF336 approved
- 8 gauge countersunk fixing holes
- Supplied with 8 × 1¼" Pozi Drive screws
- Pack quantity: 2 hinges (1 pair)
