Description

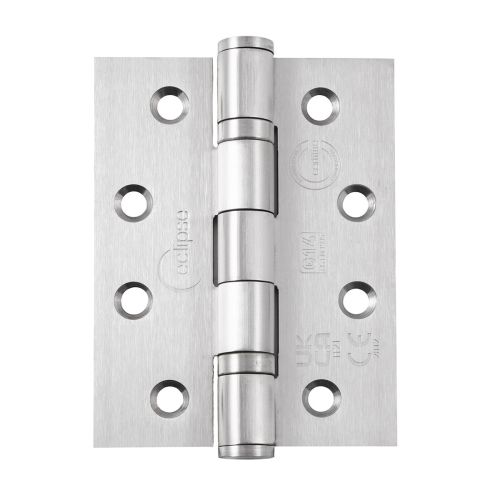

The Eclipse 102 x 76mm (4" x 3") Grade 14 Heavy Ball Bearing Hinges are engineered for the most demanding commercial and public building applications. Manufactured from SUS 201 stainless steel with precision heavy-duty ball bearings, they provide exceptionally smooth operation and outstanding durability. Certified to the highest European performance and fire safety standards, these hinges are suitable for timber and steel fire doors weighing up to 160kg.
Key Features:
- Eclipse Grade 14 heavy ball bearing hinges
- Manufactured from SUS 201 stainless steel
- Size: 102 x 76 x 3mm (4" x 3")
- Heavy-duty precision ball bearing construction
- BS EN 1935 performance tested to Grade 14
- Tested to 200,000 operating cycles
- Suitable for doors up to 160kg total door mass
- BS EN 1634 fire rated:
- FD30, FD60, FD90 and FD120 timber fire doors
- FD240 steel fire doors
- CE 2812, UKCA 1121 and Certifire CF336 approved
- Available with square or 10mm radius corners
- 12 gauge countersunk fixing holes
- Supplied with 12 × 1½" Pozi Drive threaded screws (¾" thread)
- Supplied complete with fixings
- Pack quantity: 1 pair
