Description

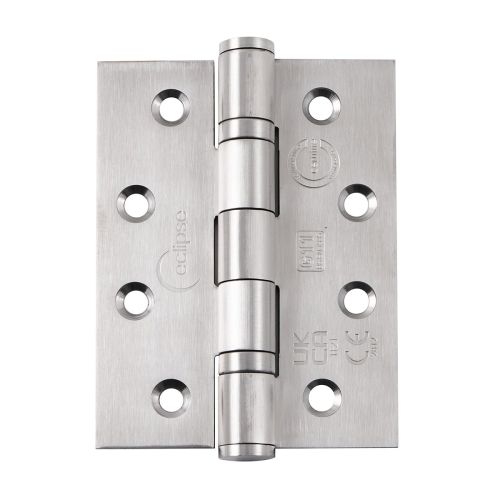

The Eclipse 102 x 76mm (4" x 3") Grade 11 Stainless Steel Ball Bearing Hinges are designed for commercial and residential applications requiring reliable performance and certified fire protection. Featuring precision ball bearing construction for smooth, low-friction operation, these hinges are tested to stringent European standards and are suitable for timber and steel fire door installations.
Key Features:
- Eclipse Grade 11 ball bearing hinges
- Manufactured from stainless steel
- Size: 102 x 76 x 3mm (4" x 3")
- Precision ball bearing construction for smooth, reliable operation
- BS EN 1935 performance tested
- Tested to 200,000 operating cycles
- Grade 11 classification
- Suitable for doors up to 80kg
- BS EN 1634 fire rated:
- FD30, FD60, FD90 and FD120 timber frame doors
- FD240 steel frame doors
- CE 2812, UKCA 1121 and Certifire approved
- 10 gauge countersunk fixing holes
- Supplied with 10 × 1½" Pozi Drive threaded screws (¾" thread)
- Available as a pack of 2 or pack of 3
