Description

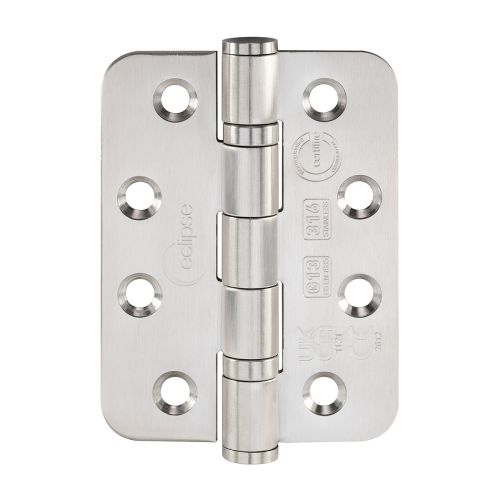

The Eclipse Grade 13 Stainless Steel 316 Ball Bearing Radius External Hinges are designed for demanding external and coastal environments where exceptional corrosion resistance and long-term durability are essential. Manufactured from premium SUS 316 stainless steel with precision ball bearings and 10mm radius corners, these hinges deliver smooth, reliable operation while meeting stringent European performance and fire safety standards. They are ideal for commercial, public and residential external doors.
Key Features:
- Eclipse Grade 13 external ball bearing hinges
- Manufactured from premium SUS 316 stainless steel
- Ideal for external, coastal and corrosive environments
- Size: 102 x 76 x 3mm (4" x 3")
- Manufactured with 10mm radius corners
- Precision ball bearing construction for smooth, reliable operation
- BS EN 1935 performance tested to Grade 13
- Tested to 200,000 operating cycles
- Suitable for doors up to 120kg total door mass
- BS EN 1634 fire rated:
- FD30, FD60, FD90 and FD120 timber fire doors
- FD240 steel fire doors
- CE 2812, UKCA 1121 and Certifire CF336 approved
- 12 gauge countersunk fixing holes
- Supplied with 12 × 1½" Pozi Drive threaded screws (¾" thread)
- Supplied complete with fixings
- Pack quantity: 2 hinges (1 pair)
