Description

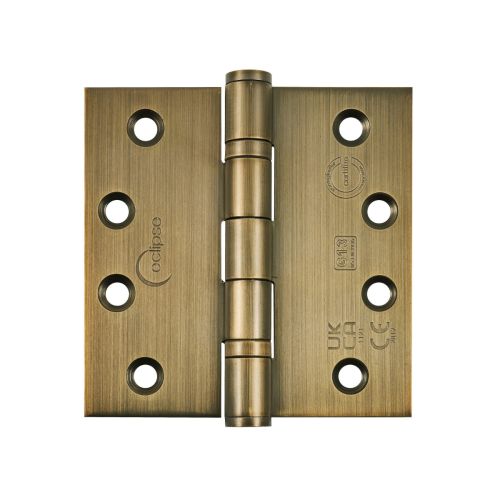

The Eclipse 102 x 102mm (4" x 4") Grade 13 Ball Bearing Hinge is designed for demanding commercial and public building applications. Manufactured from SS201 stainless steel with a precision ball bearing construction, it delivers smooth, long-lasting operation while meeting stringent European performance and fire safety standards. Fully CE, UKCA and Certifire approved, it is suitable for heavy-duty timber and steel fire doors.
Key Features:
- Eclipse branded Grade 13 ball bearing hinge
- Manufactured from SS201 stainless steel
- Size: 102 x 102 x 3mm (4" x 4")
- Precision ball bearing construction for smooth, reliable operation
- BS EN 1935 performance tested – Grade 13
- Suitable for doors up to 120kg total door mass
- BS EN 1634 fire tested:
- FD30, FD60, FD90 and FD120 timber fire doors
- FD240 steel fire doors
- CE, UKCA and Certifire approved
- 100% Eclipse quality inspection checked
- 12 gauge countersunk fixing holes
- Supplied with 12 × 1½" Pozi Drive threaded screws (¾" thread)
- Pack quantity: 1 pair
