Description

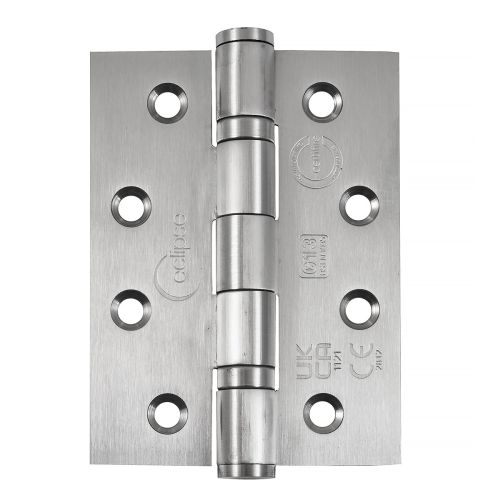

The Eclipse Satin Stainless Steel Grade 13 Ball Bearing Hinges are engineered for demanding commercial and public building applications where smooth operation, durability and fire performance are essential. Certified to BS EN 1935 and BS EN 1634 standards, these hinges feature precision ball bearings for long-lasting performance and are suitable for heavy-duty timber and steel fire doors. Available with square or 10mm radius corners to suit a wide range of installations.
Key Features:
- Eclipse Grade 13 ball bearing hinges
- Satin stainless steel finish
- Precision ball bearing construction for smooth, reliable operation
- BS EN 1935 performance tested
- Tested to 200,000 opening cycles
- Grade 13 classification
- Suitable for doors up to 120kg
- BS EN 1634 fire rated:
- FD30, FD60, FD90 and FD120 timber fire doors
- FD240 steel fire doors
- CE 1121, UKCA 2812 and Certifire CF336 approved
- Available with square or 10mm radius corners
- Supplied with 10 × 1¼" fully threaded screws
- Intumescent hinge pads must be used to achieve fire door compliance
