Description

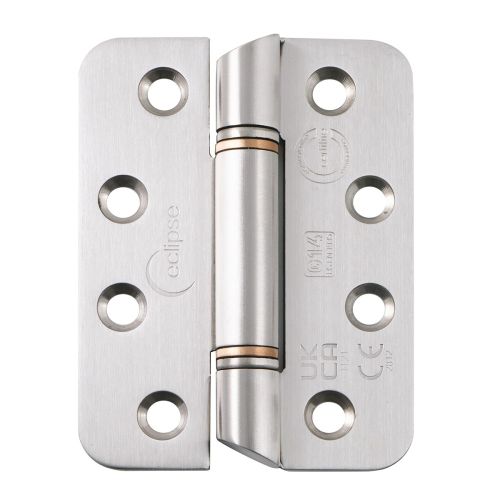

The Eclipse Grade 14 Satin Stainless Steel Anti-Ligature Hinges are designed for healthcare, custodial, mental health and other high-security environments where safety, durability and fire performance are critical. Manufactured with 10mm radius corners and an anti-ligature design, these hinges provide smooth, reliable operation while meeting the highest European performance and fire safety standards. Certified for doors weighing up to 160kg, they are ideal for demanding timber and steel fire door applications.
Key Features:
- Eclipse Grade 14 anti-ligature hinges
- Satin stainless steel finish
- Size: 102 x 76 x 3mm (4" x 3")
- Anti-ligature design for high-security applications
- Manufactured with 10mm radius corners
- BS EN 1935 performance tested to Grade 14
- Tested to 200,000 operating cycles
- Suitable for doors up to 160kg total door mass
- BS EN 1634 fire rated:
- FD30, FD60, FD90 and FD120 timber fire doors
- FD240 steel fire doors
- CE 2812, UKCA 1121 and Certifire CF336 approved
- 12 gauge countersunk fixing holes
- Supplied with 12 × 1½" Pozi Drive threaded screws (¾" thread)
- Supplied complete with fixings
- Pack quantity: 1 pair
