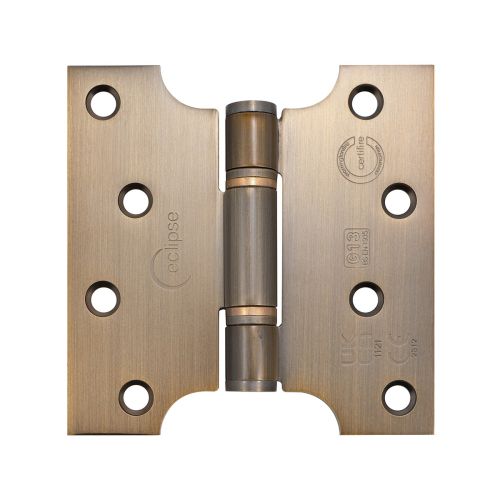

The Eclipse 102 x 51 x 102mm Stainless Steel Grade 13 Fire Rated Thrust Bearing Parliament Hinges are designed for doors requiring a wider opening angle and increased frame clearance. Manufactured from stainless steel with precision thrust bearings, they provide exceptionally smooth operation while meeting stringent European performance and fire safety standards. CE, UKCA and Certifire approved, they are ideal for demanding commercial and public building applications.
Key Features:
- Eclipse Grade 13 thrust bearing parliament hinges
- Manufactured from stainless steel
- Size: 102 x 51 x 102 x 3mm
- Thrust bearing construction for smooth, low-friction operation
- Parliament hinge design provides increased door clearance and wider opening angle
- BS EN 1935 Grade 13 performance tested
- Tested to 200,000 operating cycles
- Suitable for doors up to 120kg total door mass
- BS EN 1634 fire tested for FD30 timber fire doors
- CE 2812, UKCA 1121 and Certifire approved
- 12 gauge countersunk fixing holes
- Supplied with 12 × 1½" Pozi Drive threaded screws (¾" thread)
- Pack quantity: 1 pair
- Supplied complete with fixings
