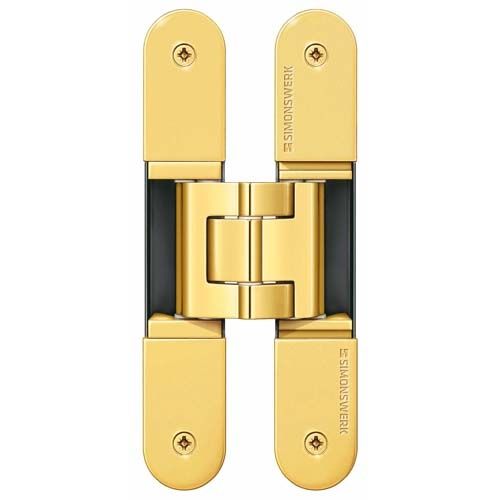

Simonswerk Tectus TE 540 3D 120kg Capacity Concealed Hinge
The Simonswerk Tectus TE 540 3D 120kg Capacity Concealed Hinge for unrebated heavy-duty doors.
Product Features:
- completely concealed hinge system
- for timber, steel or aluminium frames
- for unrebated heavy-duty doors
- sideways closed hinge body for a homogeneous mortise appearance
- with comfortable 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
- maintenance-free slide bearings
Suitable for:
- Type of door leaf = timber, metal
- Rebate = unrebated
- Type of frame = aluminium frame, blind frame, block frame, casing frame, steel frame
Function Range:
- Burglar Resistance
- Fire Resistance
- Smoke Resistance
- Soundproof
NOTE:
- The load capacity mentioned above refers to the use of 2 hinges per door leaf
- With an opening position of 180° the door may have to be fixed additionally.
Description
The Simonswerk Tectus TE 540 3D 120kg Capacity Concealed Hinge for unrebated heavy-duty doors.
Product Features:
- completely concealed hinge system
- for timber, steel or aluminium frames
- for unrebated heavy-duty doors
- sideways closed hinge body for a homogeneous mortise appearance
- with comfortable 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
- maintenance-free slide bearings
Suitable for:
- Type of door leaf = timber, metal
- Rebate = unrebated
- Type of frame = aluminium frame, blind frame, block frame, casing frame, steel frame
Function Range:
- Burglar Resistance
- Fire Resistance
- Smoke Resistance
- Soundproof
NOTE:
- The load capacity mentioned above refers to the use of 2 hinges per door leaf
- With an opening position of 180° the door may have to be fixed additionally.
