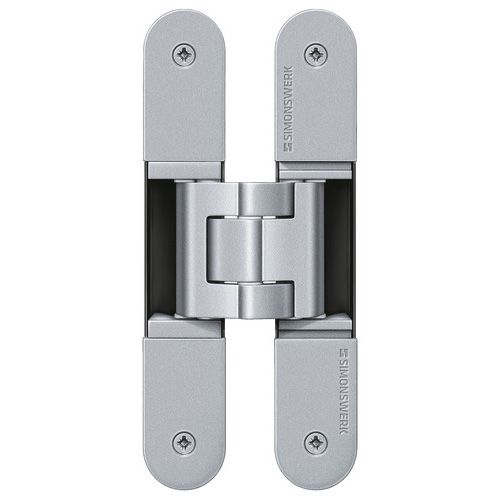

Simonswerk Tectus TE 340 3D FR 80kg Capacity Concealed Hinge
The Simonswerk Tectus TE 340 3D FR 80kg Capacity Concealed Hinge with integrated intumescent kit for unrebated residential and heavy duty doors.
Product Features:
- with integrated intumescent kit
- completely concealed hinge system
- for timber, steel or aluminium frames
- for unrebated residential and heavy-duty doors
- sideways closed hinge body for a homogeneous mortise appearance
- with comfortable 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
- maintenance-free slide bearings
Suitable for:
- Type of door leaf = timber, metal
- Rebate = unrebated
- Type of frame = aluminium frame, blind frame, block frame, casing frame, steel frame
Function Range:
- Fire Resistance
- Smoke Resistance
NOTE:
- The load capacity mentioned above refers to the use of 2 hinges per door leaf
- With an opening position of 180° the door may have to be fixed additionally.
Description
The Simonswerk Tectus TE 340 3D FR 80kg Capacity Concealed Hinge with integrated intumescent kit for unrebated residential and heavy duty doors.
Product Features:
- with integrated intumescent kit
- completely concealed hinge system
- for timber, steel or aluminium frames
- for unrebated residential and heavy-duty doors
- sideways closed hinge body for a homogeneous mortise appearance
- with comfortable 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
- maintenance-free slide bearings
Suitable for:
- Type of door leaf = timber, metal
- Rebate = unrebated
- Type of frame = aluminium frame, blind frame, block frame, casing frame, steel frame
Function Range:
- Fire Resistance
- Smoke Resistance
NOTE:
- The load capacity mentioned above refers to the use of 2 hinges per door leaf
- With an opening position of 180° the door may have to be fixed additionally.
